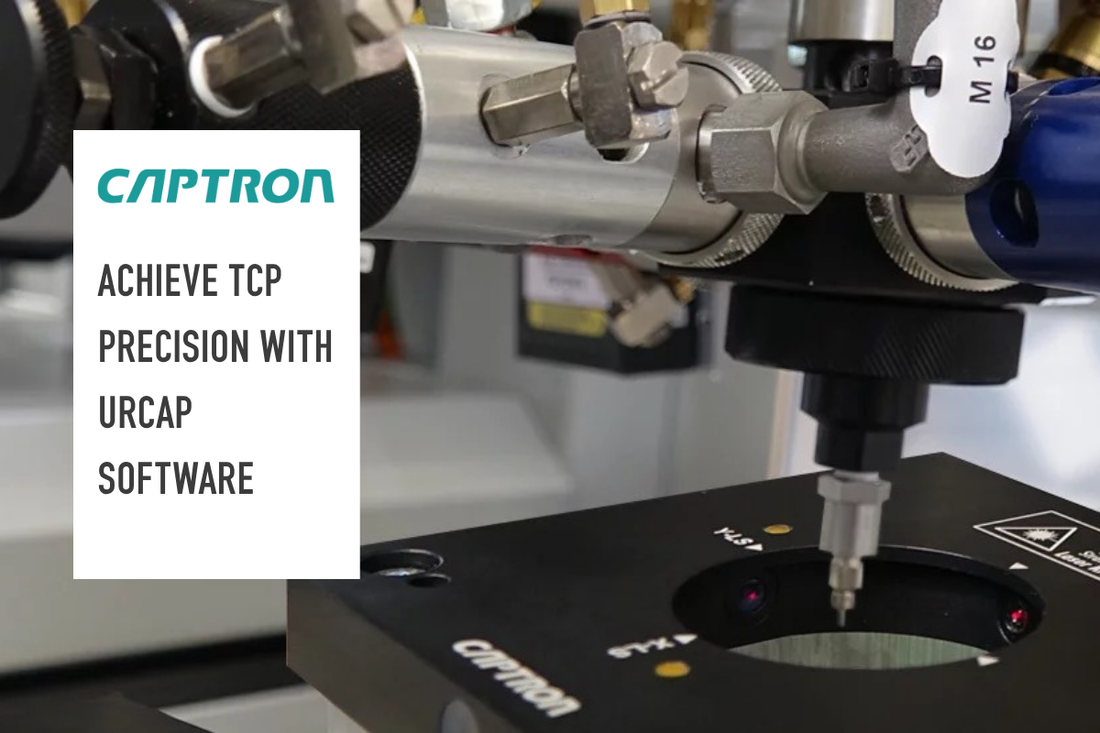

In robotic manufacturing, precision is everything. Whether you're dispensing adhesive, welding components, soldering electronics, or operating CNC tools, even minor deviations in the Tool Center Point (TCP) can lead to quality issues, scrap, rework, and unplanned downtime.

While many manufacturers establish a TCP during initial robot commissioning, maintaining that accuracy over time is often the greater challenge. Tool wear, collisions, thermal expansion, and routine maintenance can gradually shift the TCP without operators noticing.

CAPTRON's URCap software addresses this challenge by integrating automated TCP verification and recalibration directly into Universal Robots cobots and robotic systems.

Why TCP Accuracy Changes Over Time

A robot may repeatedly move to the same programmed position, but that does not guarantee the tool itself is still positioned correctly.

Several factors can affect TCP accuracy:

  • Tool wear
  • Replacement of consumables
  • Mechanical vibration
  • Minor collisions
  • Tool changes
  • Thermal expansion
  • Fixture modifications

Even a small TCP deviation can significantly impact applications requiring high precision.

For example:

  • A dispensing needle may miss its intended bead path.
  • A welding torch may drift from the weld seam.
  • A drill may produce inaccurate hole locations.
  • A soldering tip may miss critical contact points.

The result is reduced process consistency and increased production costs.

What Is the CAPTRON URCap?

The CAPTRON URCap is a software extension developed specifically for Universal Robots platforms.

Installed directly within the UR Polyscope environment, the URCap integrates CAPTRON TCP measurement technology into robot programming and operation.

Rather than requiring separate calibration procedures, operators can verify or recalibrate TCP values directly from the robot interface.

The software has been tested and certified for Universal Robots systems, providing seamless integration and simplified operation.

Key Features of the CAPTRON URCap

Guided TCP Setup

The URCap provides a step-by-step calibration workflow that simplifies tool setup and commissioning.

Users can:

  • Measure X, Y, and Z reference positions
  • Define tool diameter
  • Store multiple TCP configurations
  • Configure up to 30 different tools within a single installation

This reduces setup complexity while improving repeatability across production lines.

Automated TCP Verification During Production

One of the most powerful capabilities of the URCap is the ability to automatically check TCP accuracy within a running robot program.

Instead of waiting until quality issues appear, manufacturers can verify tool position proactively.

Benefits include:

  • Early detection of TCP drift
  • Reduced scrap and rework
  • Improved process stability
  • Greater confidence in unattended operation

Automatic TCP Recalibration

When deviations are detected, the system can initiate recalibration using predefined routines.

This enables manufacturers to:

  • Restore TCP accuracy quickly
  • Minimize operator intervention
  • Reduce downtime
  • Maintain process consistency

The actual calibration process typically takes only a few seconds.

Tool Wear Monitoring

In addition to TCP verification, the system can detect dimensional changes in certain tools.

This provides valuable insight into:

  • Tool wear
  • Consumable degradation
  • Preventive maintenance planning

Manufacturers can address issues before product quality is affected.

Applications That Benefit Most

Automated TCP verification is especially valuable in processes where precision directly impacts quality.

Common applications include:

Dispensing and Gluing

Accurate bead placement is essential for adhesive performance and appearance. TCP verification helps ensure consistent application quality.

Welding

Weld quality depends on maintaining precise torch positioning. Automated TCP checks help prevent weld defects caused by tool drift.

Soldering

Electronic assemblies require highly accurate tip placement. Maintaining TCP accuracy improves repeatability and reduces defects.

Drilling and Milling

Tool position directly affects dimensional accuracy. TCP monitoring helps maintain tight tolerances throughout production runs.

Compatible Universal Robots Platforms

The CAPTRON URCap is compatible with:

  • UR3e
  • UR5e
  • UR7e
  • UR10e
  • UR16e
  • UR20
  • UR30

The software supports Universal Robots systems running Polyscope version 5.11 and later.

Compatible TCP Measurement Systems

The URCap works with CAPTRON TCP measurement solutions including:

  • ORL2-40T-2PS6
  • OGLW2-40T-2PS6
  • OGLW2-70T4-2PS6

These optical measurement systems provide the data required for accurate TCP verification and recalibration.

Multiple Robots, One Measurement System

Manufacturers often ask whether a single TCP measurement unit can be used across multiple robots.

The answer is yes.

Using a splitter configuration, several robots can share a TCP measurement system. This can reduce hardware costs while simplifying implementation across a production cell.

(Note: software licensing remains robot-specific.)

Bringing Predictive Maintenance to TCP Management

Traditional TCP calibration is often reactive. Operators recalibrate only after quality problems become visible.

CAPTRON's URCap enables a more proactive approach by integrating TCP verification directly into production workflows.

Instead of discovering errors after parts are produced, manufacturers can detect and correct TCP deviations before they impact quality.

The result is:

  • Improved product consistency
  • Reduced downtime
  • Lower scrap rates
  • Increased automation reliability
  • Greater return on robot investments

Ready to Automate TCP Verification?

CAPTRON's TCP Optical Sensors and URCap software combine to create a complete solution for automated TCP monitoring and recalibration in Universal Robots applications.

Whether you're dispensing adhesives, welding assemblies, soldering electronics, or machining precision components, automated TCP verification can help maintain accuracy while reducing manual intervention.
