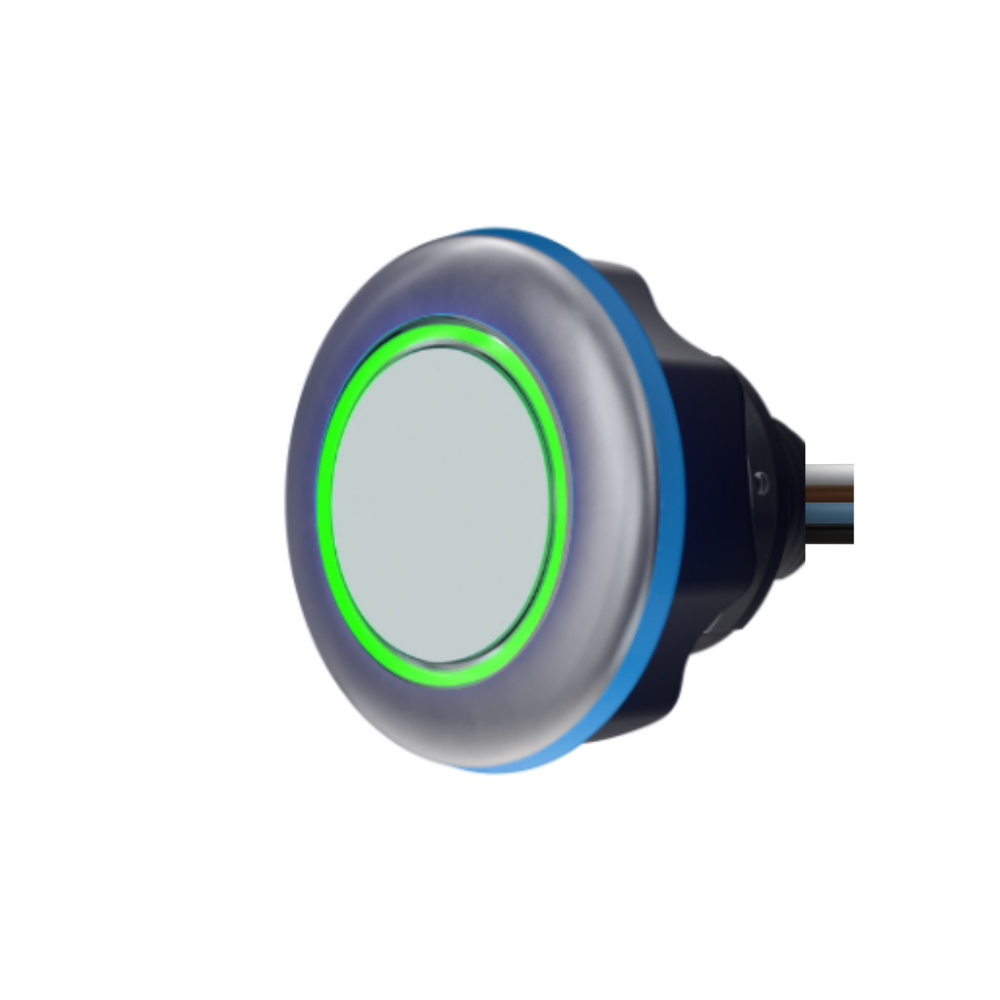

• CAPTRON CANEO series10 stranded touch button green LED
  • Technical specifications and diagram of a CANEO series 10 hygienic touch button by CAPTRON.

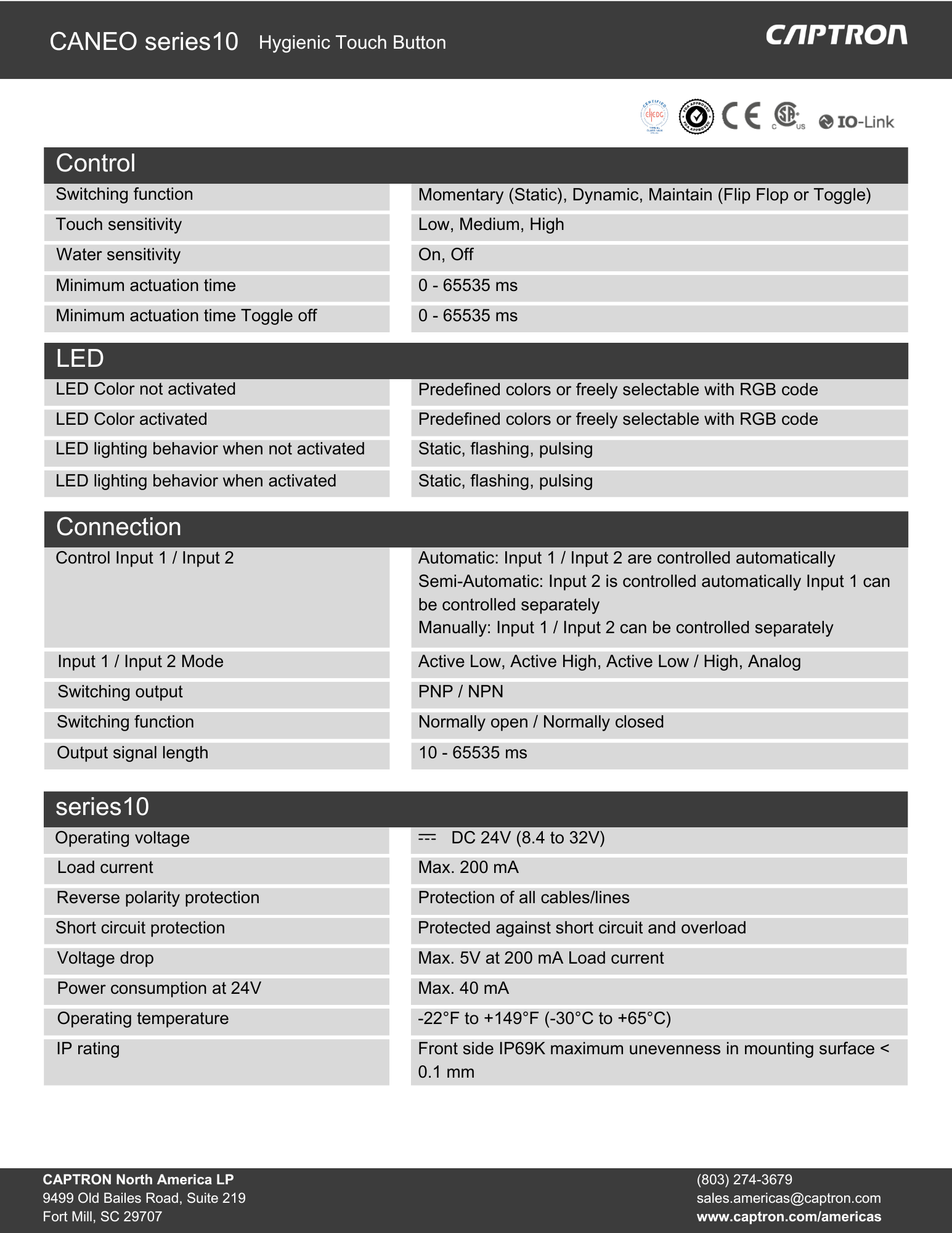

  • Technical specifications sheet for CANEO series 10 hygienic touch button by CAPTRON

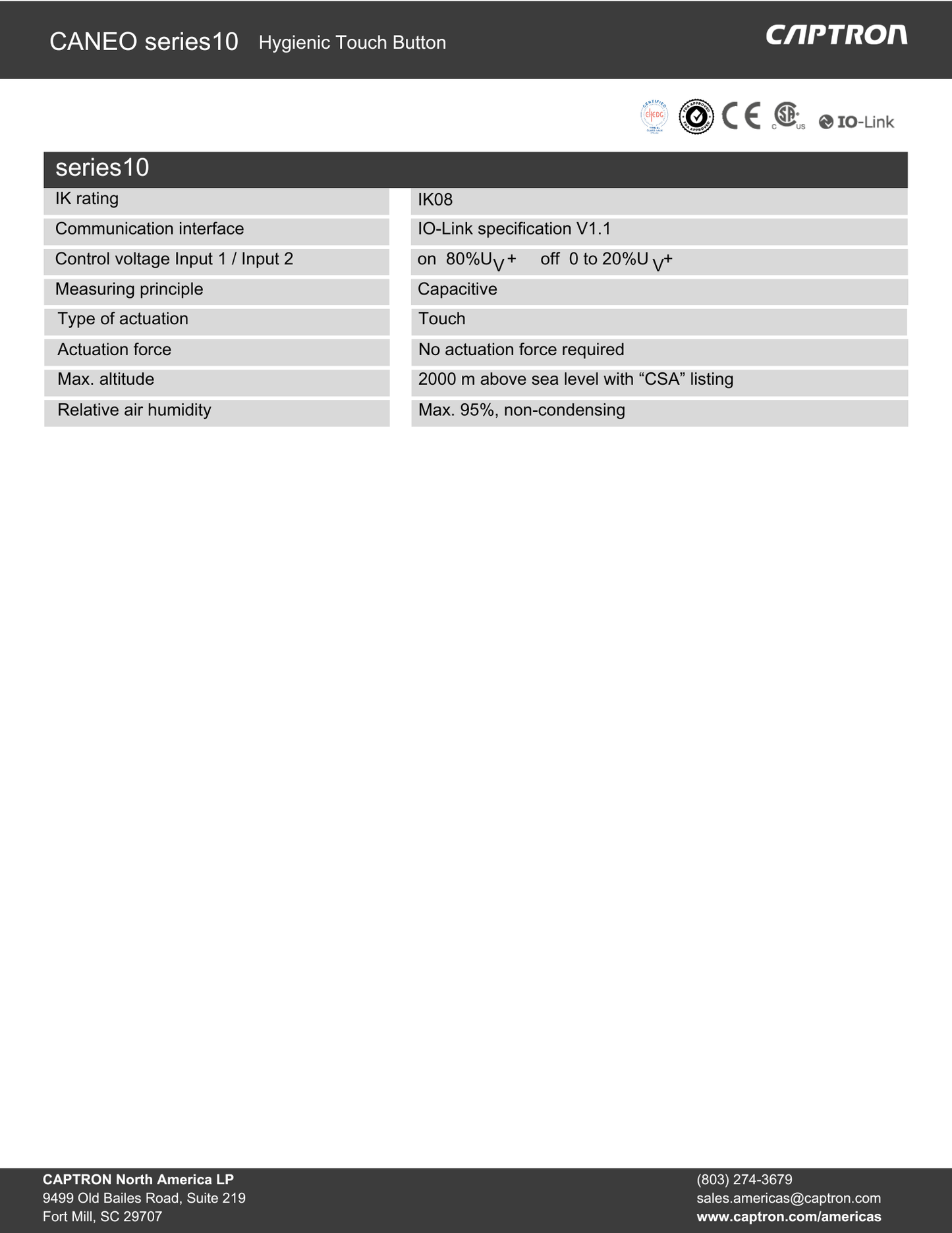

  • Technical specifications of a CANEO series10 hygienic touch button on a white background.

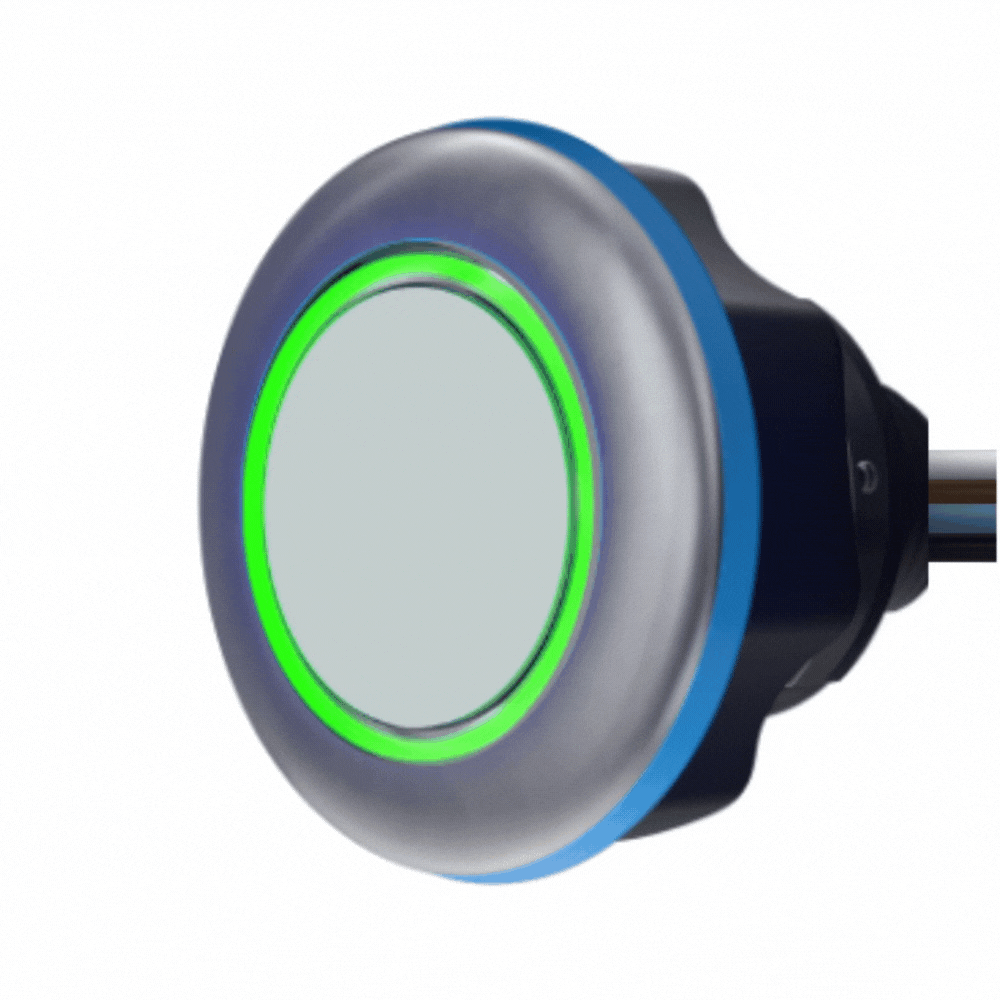

  • animation of CAPTRON CANEO series10 hygienc blank sybmol stranded button changing from green to red

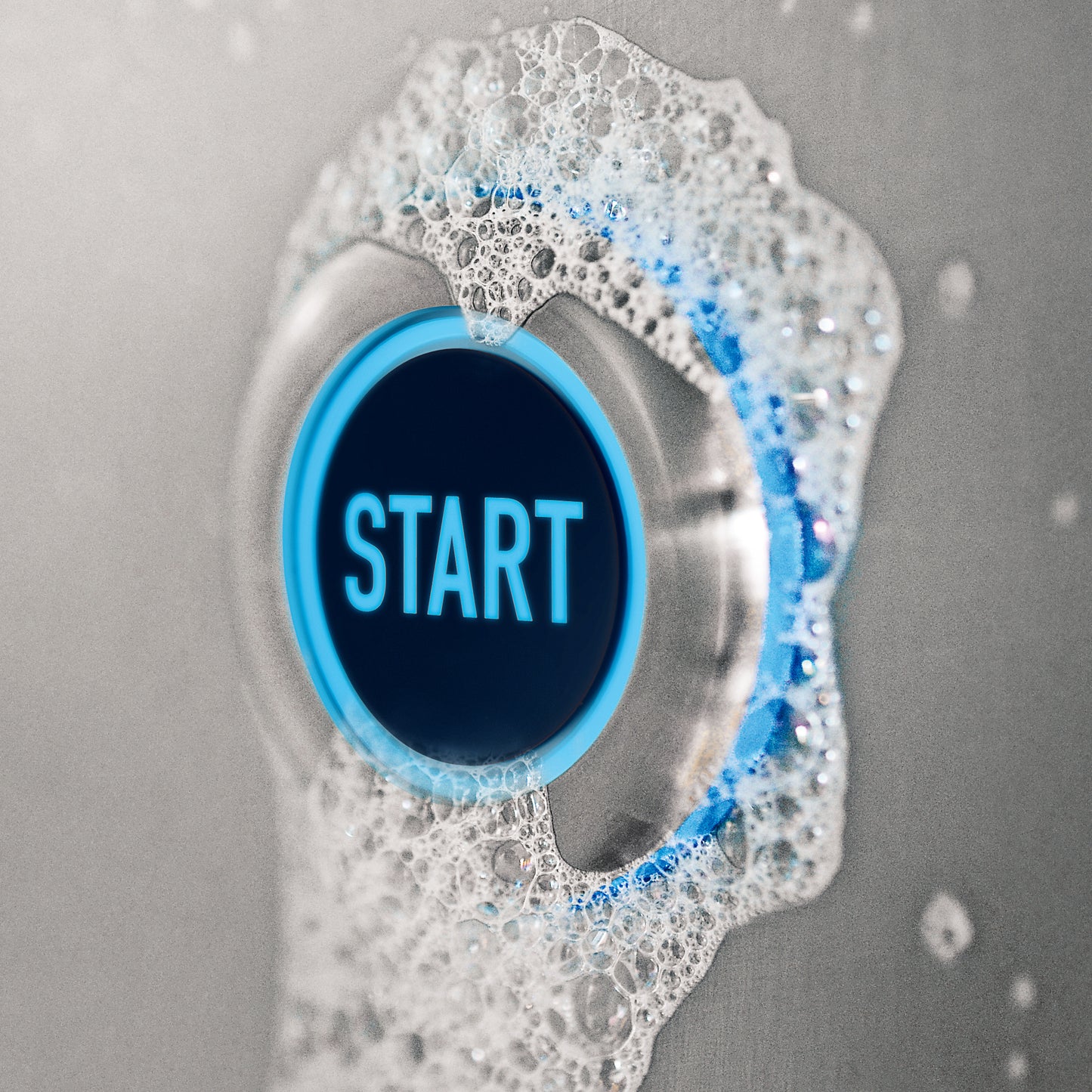

  • Button labeled 'START' with blue border surrounded by soap bubbles on a gray background
  • Hand pressing a button with blue light on a metallic surface

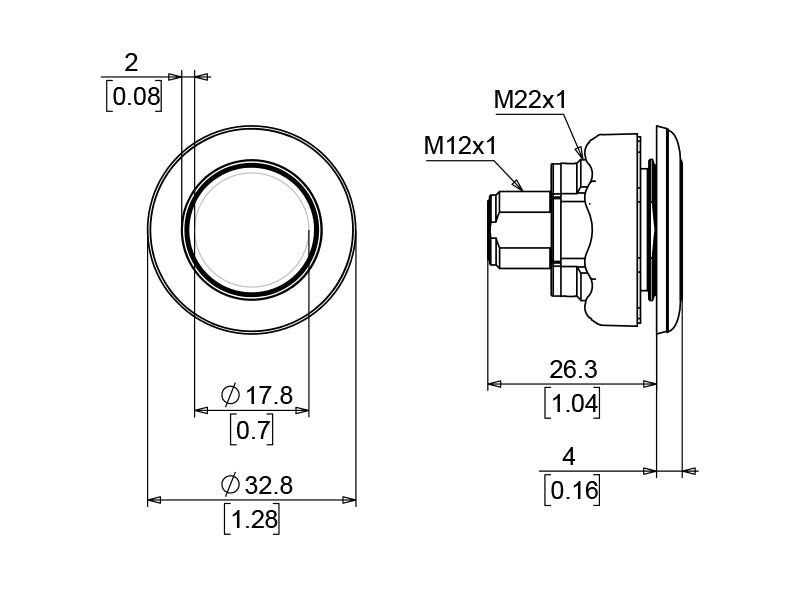

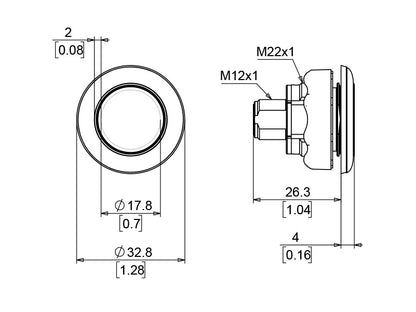

  • Technical drawing of a mechanical component with dimensions

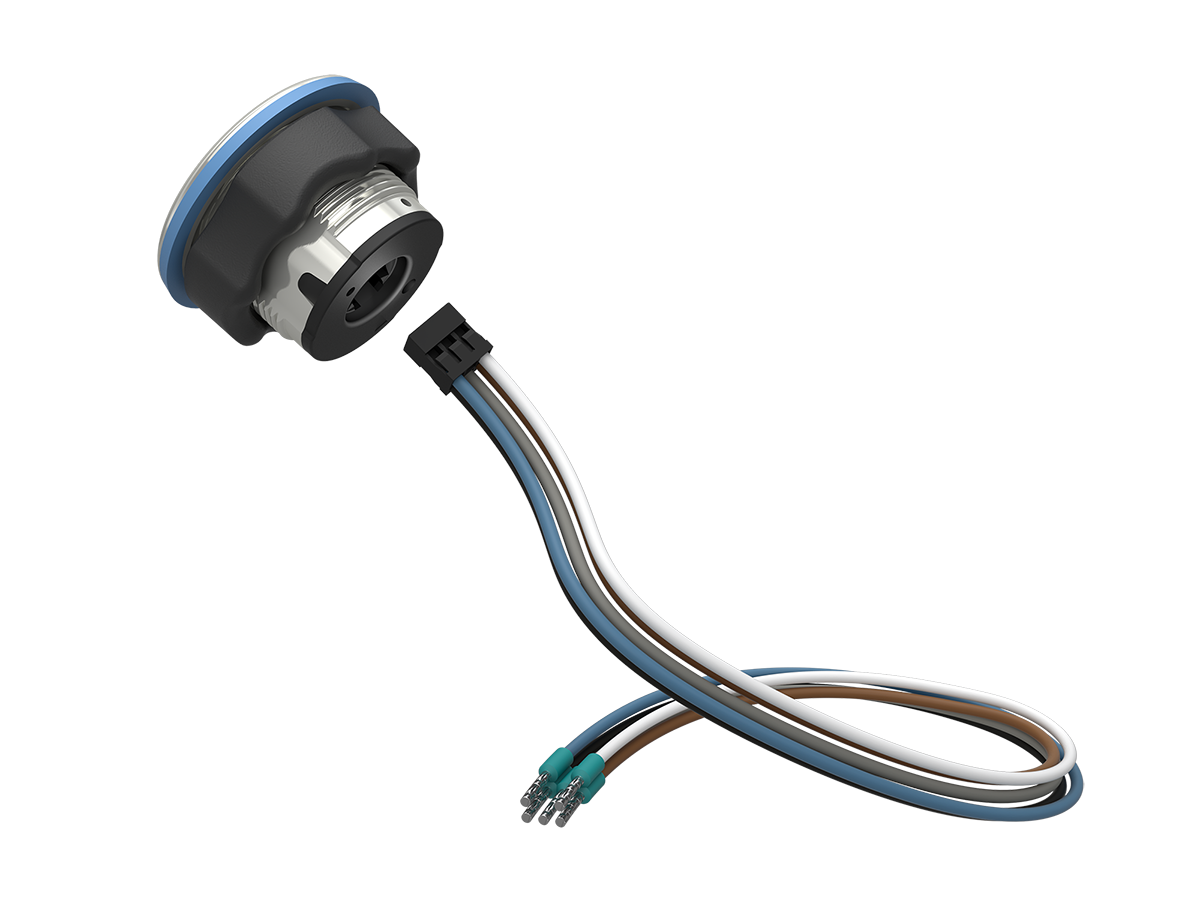

  • Electrical connector with wiring on a white background
1 9

CANEO series10 | Hygienic Touch Button | Blank Symbol

CANEO series10 | Hygienic Touch Button | Blank Symbol

$92.99 USD
$92.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

IP69K-Rated Hygienic Capacitive Touch Button

The CANEO series10 hygienic touch button with blank symbol delivers reliable, contamination-free control for food & beverage, pharmaceutical, and washdown environments. Engineered for extreme hygiene with a fully sealed, flush-mount design that eliminates bacteria traps.

Key Features

  • IP69K Protection: Withstands high-pressure, high-temperature washdown (up to 1450 psi at 176°F)
  • Capacitive Technology: Works with gloves, no mechanical wear, 100M+ cycle life
  • FDA Compliant & EHEDG-Certified: Meets food safety and hygienic design standards
  • IO-Link Ready: Smart sensor communication for Industry 4.0 integration
  • Hygienic Design: EHEDG-compliant, smooth surface, no crevices
  • Vandal-Proof: Shock-resistant, tamper-proof industrial construction

Applications

Ideal for food processing lines, beverage bottling, dairy plants, meat processing, pharmaceutical manufacturing, and any environment requiring frequent intensive cleaning.

Product configurations can be modified via IO-Link. If you’d like to order a product with a different factory configuration that isn’t listed in our store, please contact us at sales.americas@captron.com.

Afficher tous les détails

Washdown Recommendations

The CANEO series10 hygienic touch button will activate during washdown.

We recommend disabling button function or powering down your control systems before washdown.

Sensor Modes Explained

The CANEO series10 offers three different sensor modes:

Dynamic: The discrete signal is limited to x milliseconds when the sensor area is activated. Default mode is 300 milliseconds and can be configured via IO-Link.

Momentary/Static: The discrete signal is continuously on as long as the sensor area is activated.

Maintain/Toggle/Flip Flop: The discrete signal turns on when the sensor area is touched and stays on until the sensor area is touched again.

Input Modes Explained

All CANEO buttons are either M12, 5-pin or stranded. Depending on the input mode set, certain wires are used or left unused.

Automatic: (3-pin) LED is a set color when it’s idle and can be an alternately configured color when it’s touched.

Semi-Automatic: (4-pin) Idle LED is controlled by an output signal. Ideal when you would like to display a flashing signal to prompt the user to touch the button. An alternatively configured color is activated when touched.

Manual: (5-pin) Both LED colors are configured and controlled by an output signal.

Technical Downloads

STEP Files

IODD File

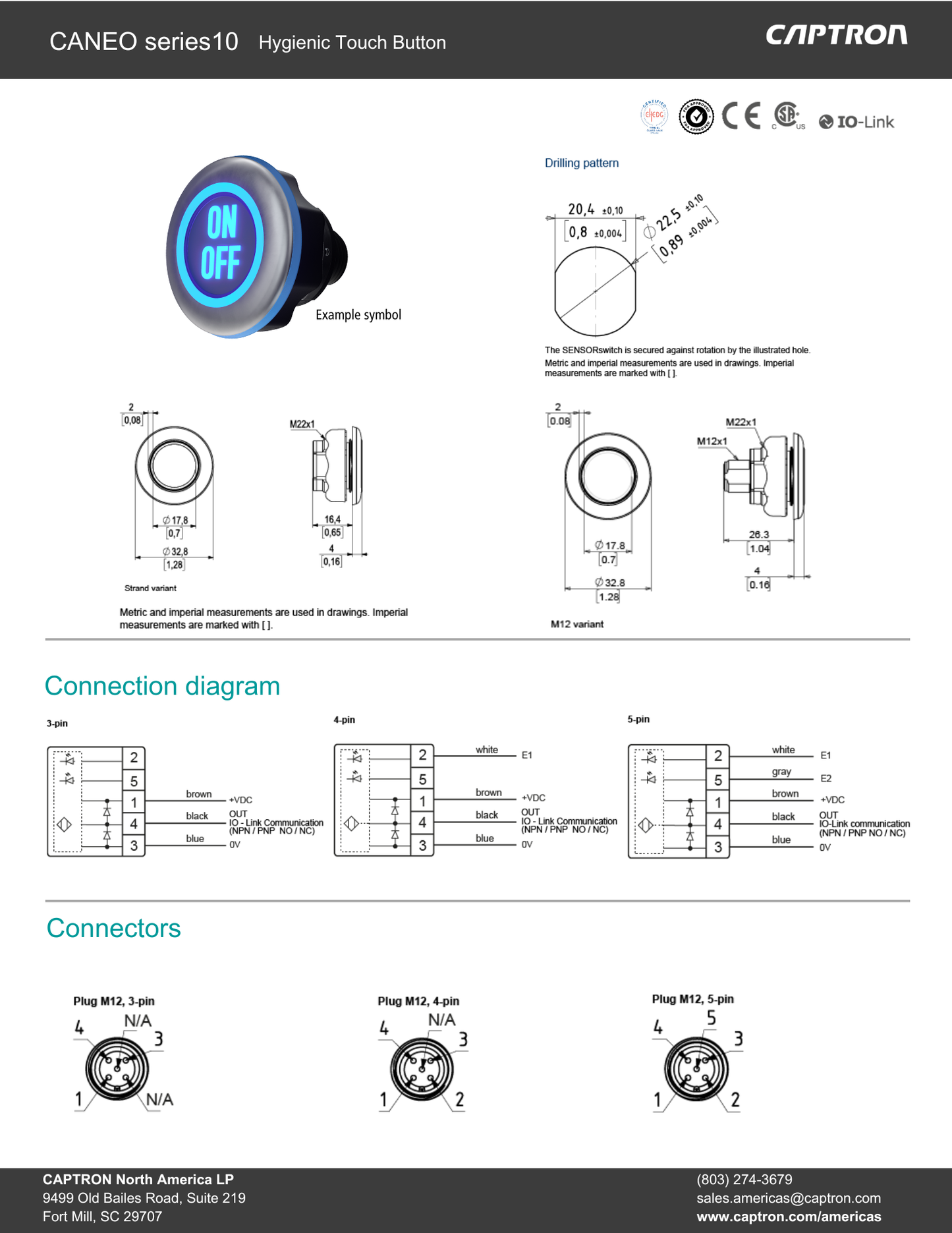

Data Sheet

Operating Instructions

Assembly & Maintenance Instructions

Configurable Parameters

Variante Total des variantes Quantité Prix Total des variantes
Green/Red / M12 5-pin / Momentary | Semi-AutomaticCS10H-MSDT-C20-030B
Green/Red / M12 5-pin / Momentary | Semi-AutomaticCS10H-MSDT-C20-030B
$92.99/pièce		 $0.00
$92.99/pièce $0.00
Green/Red / Stranded / Momentary | Semi-AutomaticCS10H-MODU-C20-0B9B
Green/Red / Stranded / Momentary | Semi-AutomaticCS10H-MODU-C20-0B9B
$92.99/pièce		 $0.00
$92.99/pièce $0.00
Green/Red / Stranded / Dynamic | AutomaticCS10H-MODU-C20-08DF
Green/Red / Stranded / Dynamic | AutomaticCS10H-MODU-C20-08DF
$92.99/pièce		 $0.00
$92.99/pièce $0.00
Voir le panier
0

Total des articles

$0.00

Sous-total des produits

Taxes, réductions et frais d’expédition calculés à l’étape du paiement.
Voir le panier

Besoin d'une configuration non vue ici ?

Les produits proposés dans cette boutique en ligne ne sont qu'un aperçu de l'offre de CAPTRON Amérique du Nord. Si vous avez besoin d'une autre configuration ou d'une commande en grande quantité, contactez-nous à l'adresse sales.americas@captron.com pour discuter de vos besoins. Besoin d'aide pour choisir un produit ? Notre équipe technique est là pour vous aider. techsupport.americas@captron.com.
