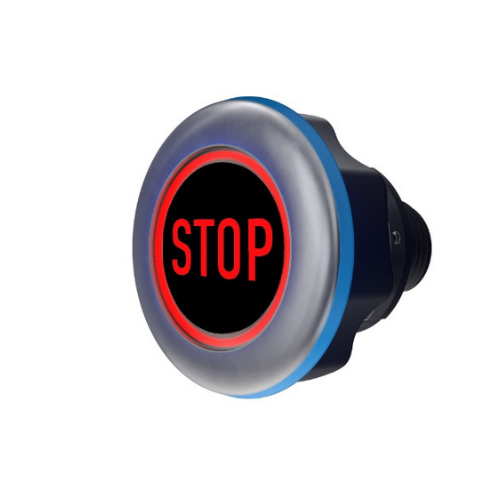

• CAPTRON CANEO Hygienic Button with 'STOP' text on a black background
  • Technical specifications and diagram of a CANEO series 10 hygienic touch button by CAPTRON.
  • Technical specifications sheet for CANEO series 10 hygienic touch button by CAPTRON
  • Technical specifications of a CANEO series10 hygienic touch button on a white background.

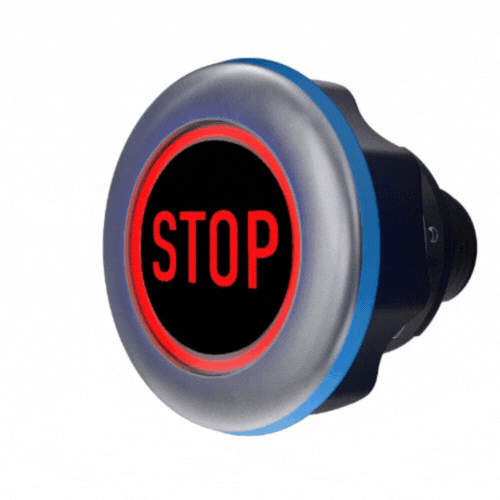

  • Animation of CAPTRON CANEO series10 STOP button changing from green to red
  • Button labeled 'START' with blue border surrounded by soap bubbles on a gray background
  • Hand pressing a button with blue light on a metallic surface
1 7

CANEO series10 | Hygienic Touch Button | Stop Symbol

CANEO series10 | Hygienic Touch Button | Stop Symbol

$92.99 USD
$92.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Hygiene is critical in every stage of food production and processing. The CANEO series10 Hygienic Touch Button by CAPTRON is designed specifically for environments that demand absolute cleanliness, reliability, and compliance.

Engineered to meet the strictest requirements of the food and beverage industry, this EHEDG-certified and FDA compliant solution ensures safe operation and long-lasting durability—even under intensive cleaning conditions.

Product Highlights:

  • Completely sealed, eliminating bacterial harborage points
  • Actuates for operators even while wearing gloves
  • IP69K
  • IO-Link capable
  • LED color values may be configured via IO-Link
  • M12, 5-pin
  • See Downloads for further technical details

Pre-Programmed Configuration:

LED colors: Red/Green

Sensor Mode: Dynamic

Input Mode: Semi-Automatic

Product configurations can be modified via IO-Link. If you’d like to order a product with a different factory configuration that isn’t listed in our store, please contact us at sales.americas@captron.com.

Afficher tous les détails

Washdown Recommendations

The CANEO series10 hygienic touch button will activate during washdown.

We recommend disabling button function or powering down your control systems before washdown.

Sensor Modes Explained

The CANEO series10 offers three different sensor modes:

Dynamic: The discrete signal is limited to x milliseconds when the sensor area is activated. Default mode is 300 milliseconds and can be configured via IO-Link.

Momentary/Static: The discrete signal is continuously on as long as the sensor area is activated.

Maintain/Toggle/Flip Flop: The discrete signal turns on when the sensor area is touched and stays on until the sensor area is touched again.

Input Modes Explained

All CANEO buttons are either M12, 5-pin or stranded. Depending on the input mode set, certain wires are used or left unused.

Automatic: (3-pin) LED is a set color when it’s idle and can be an alternately configured color when it’s touched.

Semi-Automatic: (4-pin) Idle LED is controlled by an output signal. Ideal when you would like to display a flashing signal to prompt the user to touch the button. An alternatively configured color is activated when touched.

Manual: (5-pin) Both LED colors are configured and controlled by an output signal.

Technical Downloads

STEP Files

IODD File

Data Sheet

Operating Instructions

Assembly & Maintenance Instructions

Configurable Parameters
