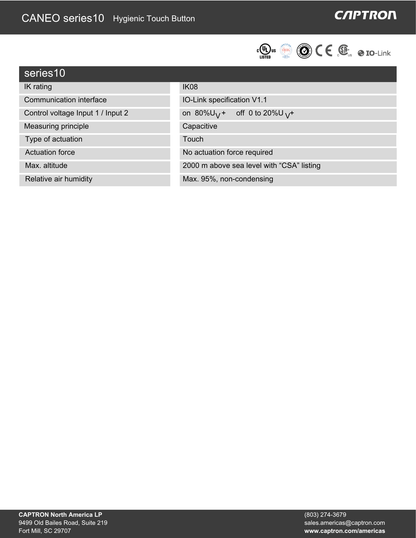

  • Technical specifications sheet for CANEO series 10 hygienic touch button by CAPTRON
  • Technical specifications of a CANEO series10 hygienic touch button on a white background.
  • Button labeled 'START' with blue border surrounded by soap bubbles on a gray background
  • Hand pressing a button with blue light on a metallic surface
  • Technical drawing of a mechanical component with dimensions
1 9

CANEO series10 | Hygienic Touch Button | Reset Symbol

CANEO series10 | Hygienic Touch Button | Reset Symbol

$92.99 USD
$92.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

IP69K-Rated Hygienic Capacitive Touch Button with Reset Symbol

Hygiene is critical in every stage of food production and processing. The CANEO series10 Hygienic Touch Button by CAPTRON is designed specifically for environments that demand absolute cleanliness, reliability, and compliance. Engineered to meet the strictest requirements of the food and beverage industry, this EHEDG-certified and FDA compliant solution ensures safe operation and long-lasting durability—even under intensive cleaning conditions.

Key Features

  • IP69K Protection: Withstands high-pressure, high-temperature washdown conditions
  • Capacitive Technology: Actuates for operators even while wearing gloves
  • FDA Compliant & EHEDG-Certified: Meets food safety and hygienic design standards
  • IO-Link Capable: LED color values configurable via IO-Link for smart factory integration
  • Completely Sealed Design: Eliminates bacterial harborage points

Applications

Ideal for food processing lines, beverage bottling, dairy plants, pharmaceutical manufacturing, and any environment requiring frequent intensive cleaning and reset functionality.

Product configurations can be modified via IO-Link. If you’d like to order a product with a different factory configuration that isn’t listed in our store, please contact us at sales.americas@captron.com.

Ver todos los detalles

Washdown Recommendations

The CANEO series10 hygienic touch button will activate during washdown.

We recommend disabling button function or powering down your control systems before washdown.

Sensor Modes Explained

The CANEO series10 offers three different sensor modes:

Dynamic: The discrete signal is limited to x milliseconds when the sensor area is activated. Default mode is 300 milliseconds and can be configured via IO-Link.

Momentary/Static: The discrete signal is continuously on as long as the sensor area is activated.

Maintain/Toggle/Flip Flop: The discrete signal turns on when the sensor area is touched and stays on until the sensor area is touched again.

Input Modes Explained

All CANEO buttons are either M12, 5-pin or stranded. Depending on the input mode set, certain wires are used or left unused.

Automatic: (3-pin) LED is a set color when it’s idle and can be an alternately configured color when it’s touched.

Semi-Automatic: (4-pin) Idle LED is controlled by an output signal. Ideal when you would like to display a flashing signal to prompt the user to touch the button. An alternatively configured color is activated when touched.

Manual: (5-pin) Both LED colors are configured and controlled by an output signal.

Technical Downloads

STEP Files

IODD File

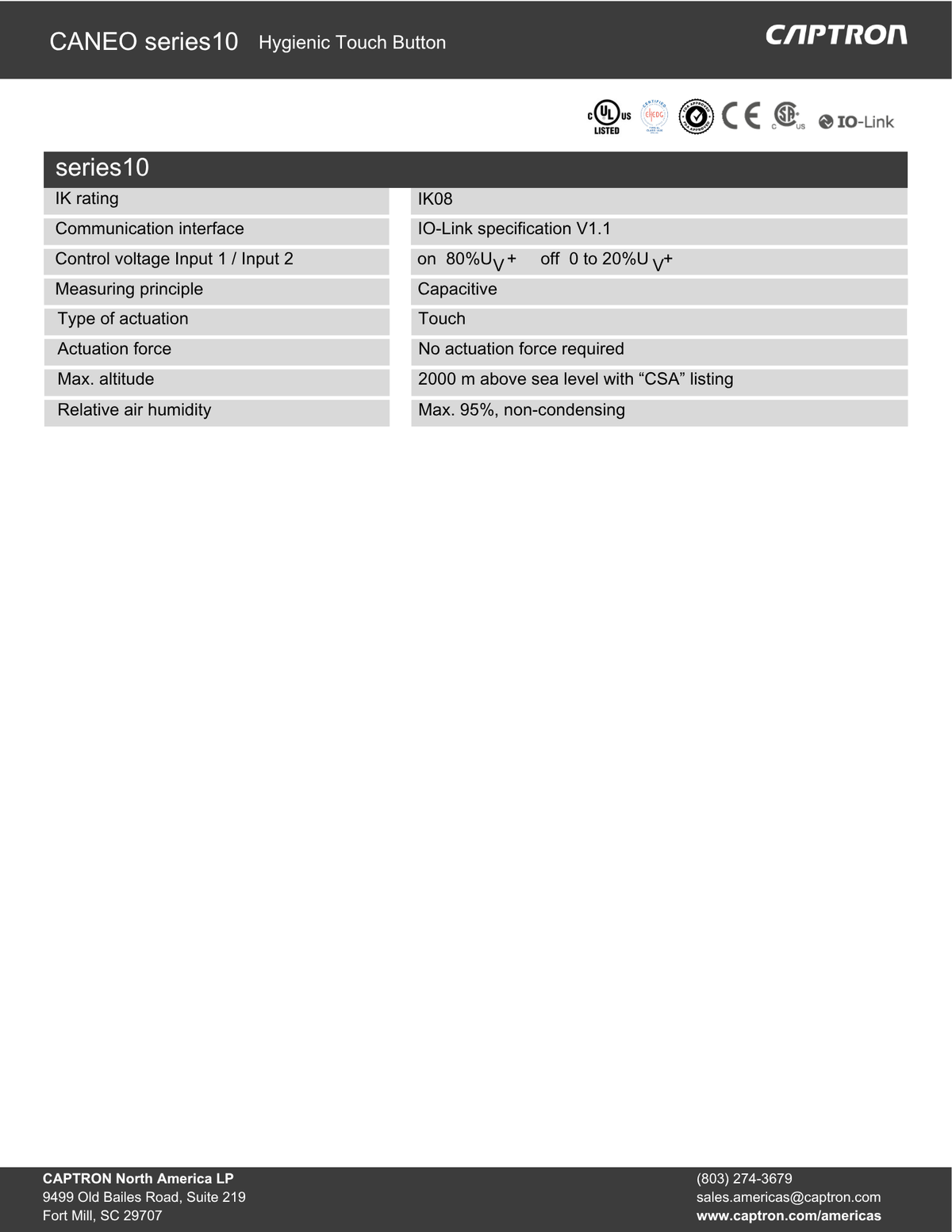

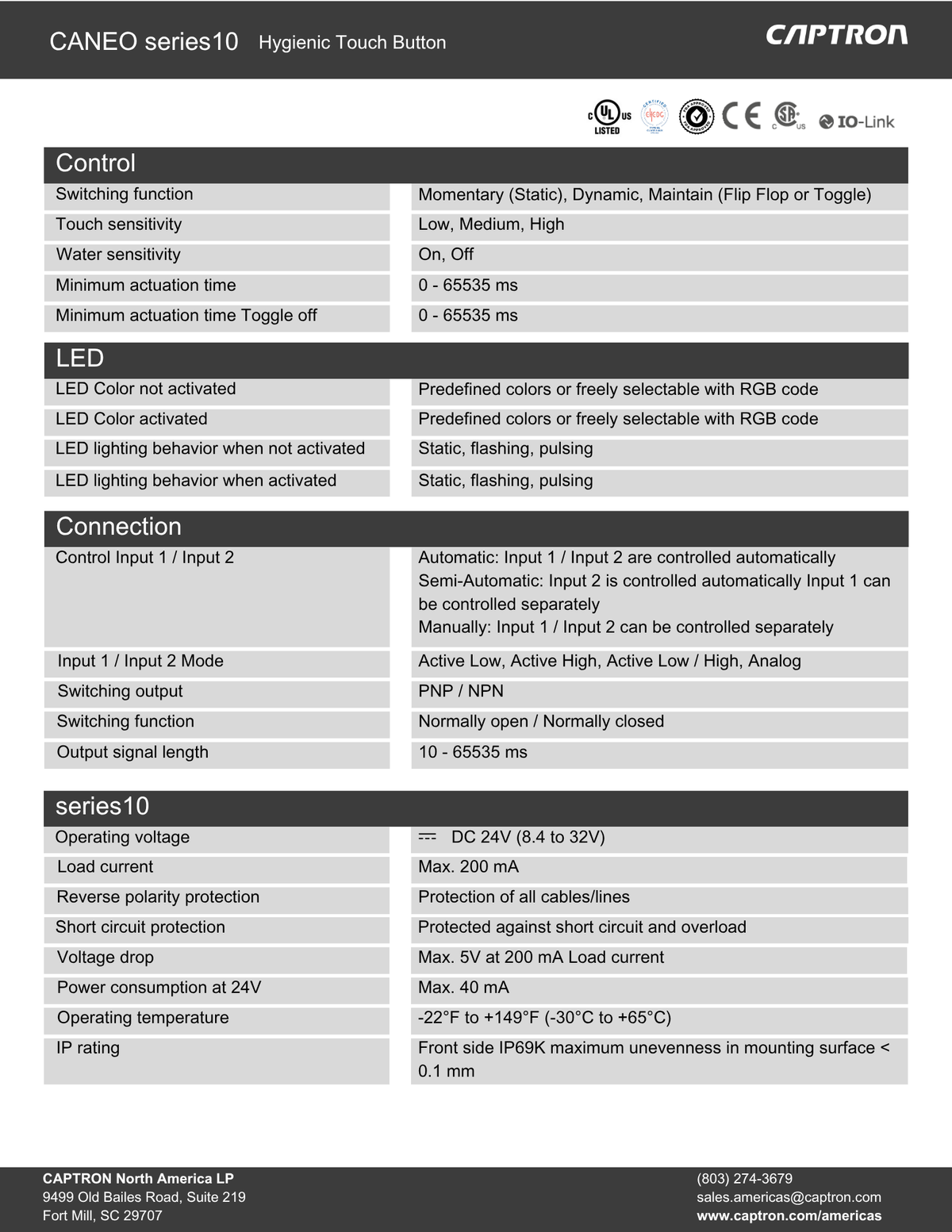

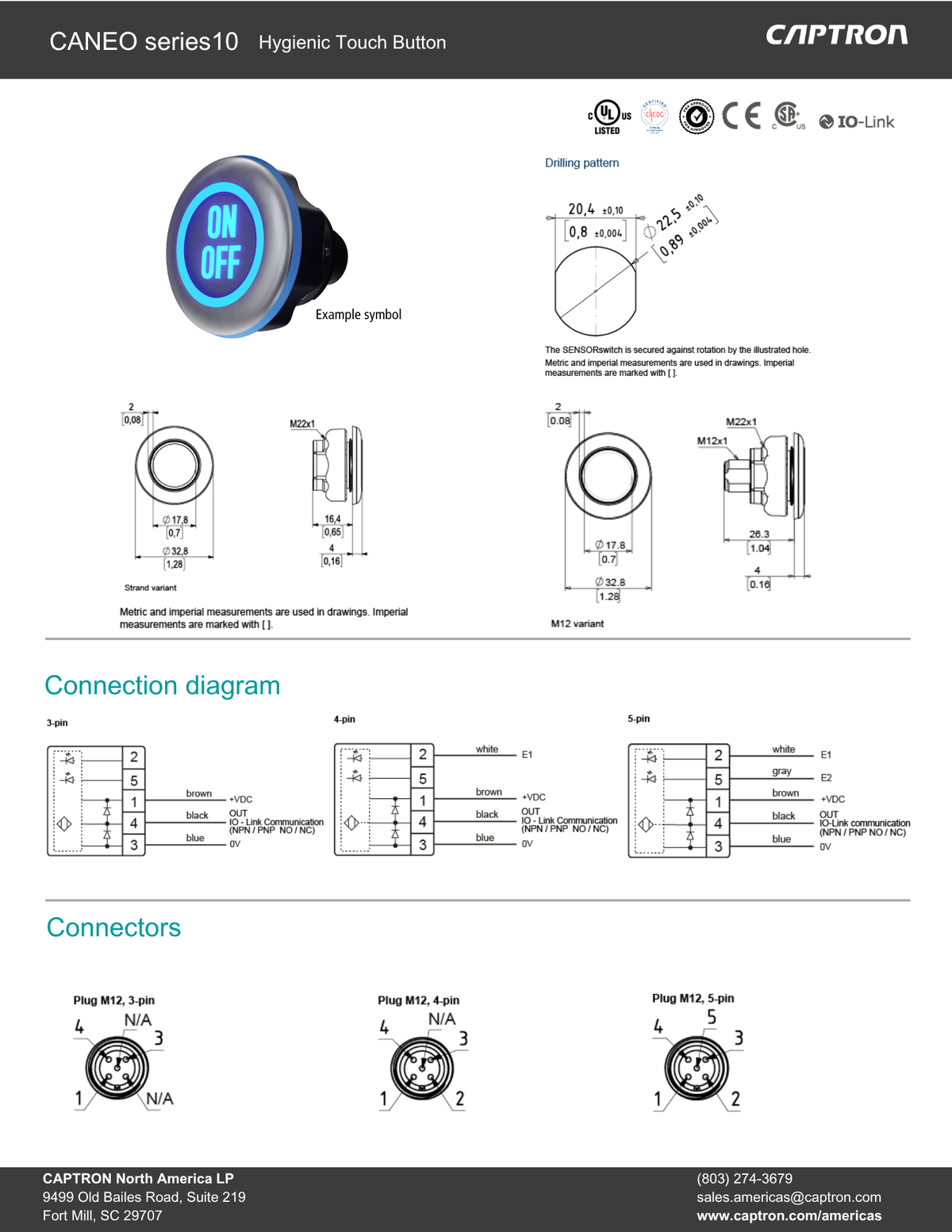

Data Sheet

Operating Instructions

Assembly & Maintenance Instructions

Configurable Parameters

Variante Total de variantes Cantidad Precio Total de variantes

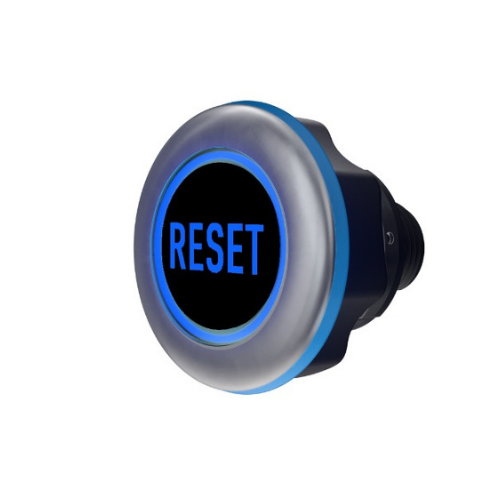

CAPTRON CANEO Hygienic Button with RESET symbol illuminated in blue

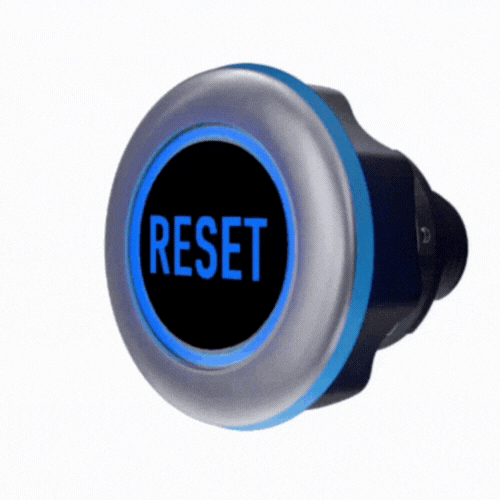

Blue/Blue Flash / M12 5-pin / Dynamic | AutomaticCS10H-MSDT-B13-0BF9
Blue/Blue Flash / M12 5-pin / Dynamic | AutomaticCS10H-MSDT-B13-0BF9
$92.99/unidad		 $0.00
$92.99/unidad $0.00

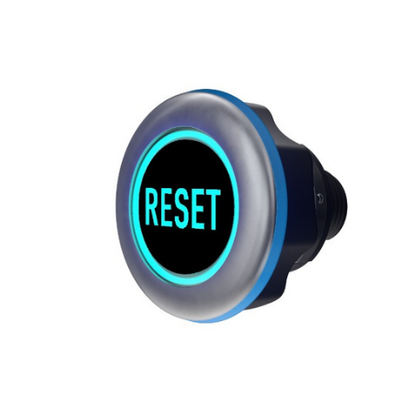

CAPTRON CANEO Hygienic Reset button with blue glowing outline on a white background

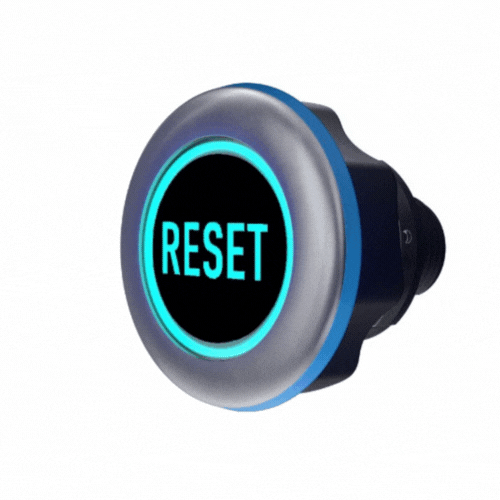

Clean Blue/Blue / M12 5-pin / Dynamic | Semi-AutomaticCS10H-MSDT-B13-0BFA
Clean Blue/Blue / M12 5-pin / Dynamic | Semi-AutomaticCS10H-MSDT-B13-0BFA
$92.99/unidad		 $0.00
$92.99/unidad $0.00
Ver carrito
0

Total de artículos

$0.00

Subtotal de productos

Impuestos, descuentos y envío calculados en la pantalla de pago.
Ver carrito

¿Necesita una configuración que no ve aquí?

Los productos que se ofrecen en esta tienda en línea son solo una pequeña selección de lo que CAPTRON Norteamérica tiene para ofrecer. Si necesita otra configuración o un pedido al por mayor, contáctenos en sales.americas@captron.com para hablar sobre sus necesidades. ¿Necesita ayuda con la selección de productos? Nuestro equipo técnico estará encantado de ayudarle: techsupport.americas@captron.com.
